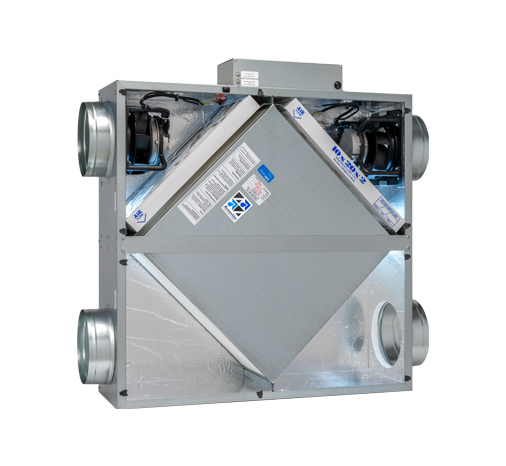

Application Type:Indoor
Ventilation Type:Static plate, heat and humidity transfer
Typical Airflow Range:120–375 CFM
AHRI 1060 Certified Core:One L62-G5
OA Filter(s):Total Qty. 1, MERV 10: 10" x 20" x 2"
RA Filter(s):Total Qty. 1, MERV 10: 10" x 20" x 2"
Dimensions:34 5/8" L x 37 5/8" W x 12 1/8" H
Weight:94 lbs.
Find a Representative
Installation Location
[IN] Indoor Unit
Orientation
V

Electrical Service
120V / 1 Phase / 60 Hz
Controls
[T] Standard Unit Control Wiring - 24 VAC Transformer/Relay Package
Cross-core Differential Pressure Ports
Unit Fusing
[N] Non-fused (Standard)
Controls
BACnet Fan Control, SL, EV Premium, HE, LE, P/N 105801BACNETFC-W
BACnet Fan Control Supplement (PDF) | PDF (1MB)
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131300
Wall Mount, TC7D-W
Digital Time Clock Manual TC7D (PDF) | PDF (1MB)
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131301
Exterior Enclosure, TC7D-E
Digital Time Clock Manual TC7D (PDF) | PDF (1MB)
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131302
Ceiling Mount, MC-C
Occupancy Sensor Manual (PDF) | PDF (1MB)
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131303
Wall Mount, MC-W
Occupancy Sensor Manual (PDF) | PDF (1MB)
CO2 Sensor, SL, EV Premium, HE, LE, RD, DN, P/N 131304
Wall Mount, CO2-W
CO2 Accessory Control Manual (PDF) | PDF (1MB)
CO2 Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131305
Duct Mount, CO2-D
CO2 Accessory Control Manual (PDF) | PDF (1MB)
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131307
Duct Mount, IAQ-D
IAQ Wiring Supplement (PDF) | PDF (1MB)
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131308
Wall Mount, IAQ-W
IAQ Wiring Supplement (PDF) | PDF (1MB)
Smoke Detector, HE, LE, RD, DN, P/N 102396
Duct Mount, SD-D
Potentiometer Speed Control, HE05, HE07, HE10, HE1.5X, P/N 147050
Remote Installed for ECM, SCECM 1 per unit
Not needed when units have Programmable Controls
Heaters & Furnaces
Electric Duct Heater - RH Series (1-11.5 kW)
RenewAire Electric Duct Heater Brochure | PDF (1MB)
Electric Duct Heater Submittals RH (PDF) | PDF (451KB)
RH Duct Heater IOM (PDF) | PDF (4MB)
Electric Duct Heater - EK Series (1-175 kW)
RenewAire Electric Duct Heater Brochure | PDF (1MB)
Electric Duct Heater Submittals EK (PDF) | PDF (359KB)
Static Electric Duct Heater CSI | PDF (175KB)
Static Electric Duct Heater CSI | Word Doc (23KB)
Electric Duct Heater IOM (PDF) | PDF (4MB)
Filters
Filter, HE05, P/N 990990
MERV 13 10" x 20" x 2" Single Filter
Dampers
Motorized Damper 8", HE05, P/N 147853,
8", MDE8
Motorized Damper 8" Supplement (PDF) | PDF (2MB)
Backdraft Damper, HE05-07, P/N 102402
10", BD10
RenewAire Hoods and Dampers | PDF (409KB)
Backdraft Damper, HE05-10, P/N 102403
12", BD12
RenewAire Hoods and Dampers | PDF (409KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131400
4", ABV-4
Automatic Balancing Damper IOM | PDF (831KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131401
5", ABV-5
Automatic Balancing Damper IOM | PDF (831KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131402
6", ABV-6
Automatic Balancing Damper IOM | PDF (831KB)
Louvered and Hooded Wall Vents
Louvered Wall Vent, SL, EV200-300, EV Premium, HE05, P/N 102399
8" Taupe, VT8
RenewAire Hoods and Dampers | PDF (409KB)
Hooded Wall Vent, SL, EV200-300, EV Premium, HE05, P/N 102406
8" Galvanized, FA8-G
RenewAire Hoods and Dampers | PDF (409KB)
Hooded Wall Vent, SL, EV200-300, EV Premium, HE05, P/N 102409
8" Paintable Galvanneal, FA8-P
RenewAire Hoods and Dampers | PDF (409KB)
Louvered Wall Vent, SL, EV200-300, EV Premium, HE05, P/N 102412
8" Round Duct Connection - 12" (W) x 8" (H), VW12 X 8
Mounting
Hanging Vibration Isolator, HE05IN, HE07IN, HE10IN, P/N 147595
50 lb. Spring Rating, 1 Isolator VIBH50
Hanging Bracket Kit, HE05IN, HE07IN, HE10IN, P/N 147594
4 brackets 07/10HEHB
HE05IN CSI
HE05INV | PDF (175KB)
HE05INV.doc | Word Doc (23KB)
HE05 CSI (French)
HE05-fr | PDF (98KB)
