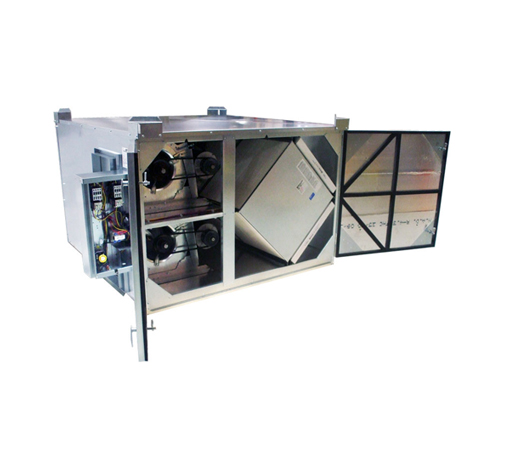

Application Type:Indoor
Ventilation Type:Static plate, heat and humidity transfer
Typical Airflow Range:750-3,300 CFM
AHRI 1060 Certified Core:Three L125-G5
OA Filter(s):Total Qty. 3, MERV 8: 20" x 20" x 2"
RA Filter(s):Total Qty. 3, MERV 8: 20" x 20" x 2"
Dimensions:72 1/2" L x 63 1/4" W x 44" H
Weight:628-934 lbs. (varies by option)
Installation Location
[IN] Indoor Unit
Orientation
H

Electrical Service
[11] 120V / 1 Phase / 60 Hz
[15] 208-230V / 1 Phase / 60 Hz
[35] 208-230V / 3 Phase / 60 Hz
[34] 460V / 3 Phase / 60 Hz
[38] 575V / 3 Phase / 60 Hz
Fan Control
[W] Onboard VFD Both Airstreams with IE5+ Ultra Premium Efficiency Motors
[A] Motor Starters & Contactors (Standard)​
[V] Onboard VFD Both Airstreams
Shaft Grounding Ring(s)
EA and FA Motors
No (Standard)
Supply Air Motor
[V] TEFC Belt Drive - 2 HP
[W] TEFC Belt Drive - 3 HP
[X] TEFC Belt Drive - 5 HP
Exhaust Air Motor
[V] TEFC Belt Drive - 2 HP
[W] TEFC Belt Drive - 3 HP
[X] TEFC Belt Drive - 5 HP
Controls
[T] Standard Unit Control Wiring - 24 VAC Transformer/Relay Package
Integrated Programmable Controls - Enhanced
Integrated Programmable Controls - Premium
BACnet Factory Activation Available on Enhanced or Premium Packages
Cross-core Differential Pressure Ports
Disconnect
[N] Non-fused (Standard)
[F] Fused
Economizer/Bypass Damper
No Bypass (Standard)
Bypass Controls
Dry Bulb
Enthalpic
Isolation Dampers
[-] No Dampers (Standard)
[D] Motorized Dampers Both Airstreams
[E] Motorized Damper EA or RA Airstream
[F] Motorized Damper FA or OA Airstream
Bypass Isolation Dampers
[0] Face and Bypass Dampers Only [Standard]
[1] Motorized Dampers All Airstreams
[5] Face and Bypass Dampers Only (Standard)​
[6] Motorized Dampers All Airstreams
Filter Type
MERV 8 (Standard)
Filter Monitor
[-] None
[F] Filter Monitor Both Airstreams
Wall
[S] Single (Standard)
[D] Double
Paint
[-] None
[W] White Paint
[C] Custom Paint
Controls
BACnet Fan Control, SL, EV Premium, HE, LE, P/N 105801 BACNETFC-W
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131300
Wall Mount, TC7D-W
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131301
Exterior Enclosure, TC7D-E
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131302
Ceiling Mount, MC-C
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131303
Wall Mount, MC-W
CO2 Sensor, SL, EV Premium, HE, LE, RD, DN, P/N 131304
Wall Mount, CO2-W
CO2 Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131305
Duct Mount, CO2-D
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131307
Duct Mount, IAQ-D
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131308
Wall Mount, IAQ-W
Smoke Detector, HE, LE, RD, DN, P/N 102396
Duct Mount, SD-D
Remote Display, HE, LE, RD, DN, P/N 131311
Units with Enhanced or Premium Controls, Handheld/Wall Mount RD-M
Room Pressure Sensor, HE, LE, RD, DN, P/N 131314
Sensor with Display, Units with Premium Controls, RPS-WD
Room Pressure Sensor, HE, LE, RD, DN, P/N 131310
Sensor without Display, Units with Premium Controls, RPS-WOD
Duct Static Pressure Sensor, HE, LE, RD, DN, P/N 131315
Sensor with Display, Units with Premium Controls, DPS-WD
Duct Static Pressure Sensor, HE, LE, RD, DN, P/N 131309
Sensor without Display, Units with Premium Controls, DPS-WOD
Temperature Sensor Kit, HE, LE, RD, DN, P/N 131318
Units with Premium Controls for non-integrated heating, TS
BACNet License Field Request, HE, LE, RD with Enhanced or Premium Controls, P/N 131316
Filters
Filter, HE, CA, PA, RD, DN-3, P/N 990083
MERV 8 20"x20"x2" Single Filter
Filter, HE, CA, PA, RD, DN-3,  P/N 990084
MERV 8 20"x20"x2" Case of 12
Filter, HE, CA, PA, RD, DN-3, P/N 990303
MERV 13 20"x20"x2" Single Filter
Dampers
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131400
4", ABV-4
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131401
5", ABV-5
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131402
6", ABV-6
Mounting
Select four isolators per unit with the proper load ratings per unit corner weights. See weight and center of gravity table in IOM.
Sound Barriers
Sound Absorbing Barrier, HE-3X-LE10X, SB4X104' x 10'
Sound Absorbing Barrier, HE-3X-LE10X, SB4X20 4' X 20'
Sound Absorbing Barrier, HE-3X-LE10X, SB4X30 4' X 30'
Nylon Ties, HE-3X-LE10X, P/N SBBAND 60"- Qty. 10
Barrier Tape, HE-3X-LE10X, P/N SBTAPE 165' x 1 7/8"
