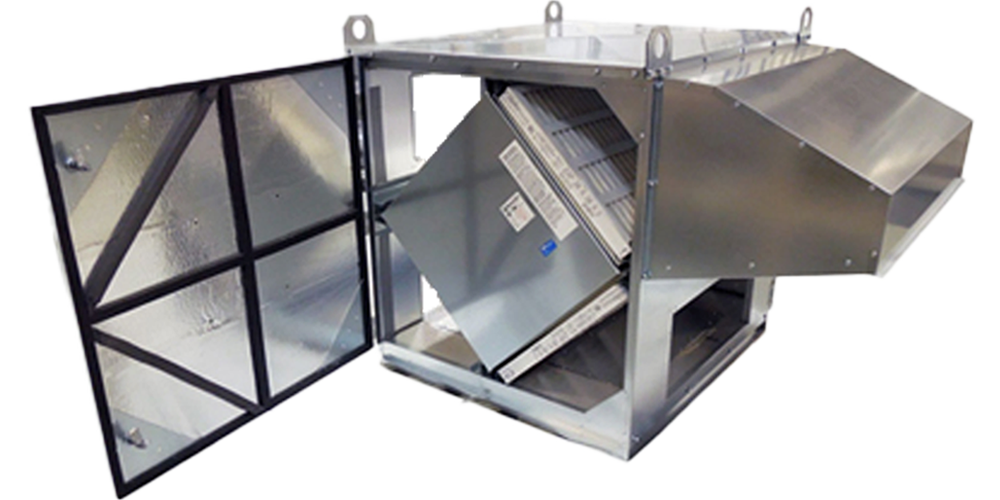

The RenewAire CA3XRT modular cabinet energy recovery ventilator (ERV) is designed as a flexible integration solution for package AC, chilled beam, fan coils, heat pumps, radiant floor and VRF/VRV systems and has a CFM range of 750–3,300 CFM. The CA3XRT is commercially certified, and can be installed for hospitals, schools, warehouses, manufacturing facilities, or institutional applications.
Unit features include a modular cabinet design that has a configurable crossflow or parallel airflows. In addition, roof curbs and MERV 13 filters are available as an accessory. Options for the CA3XRT include single and double wall (optional) construction and 1″ foil-faced insulation. The CA3XRT also has three G5 energy recovery cores, which are comprised of cellulosic-based material, and do not contain/use halogenated flame retardants or PVCs.
