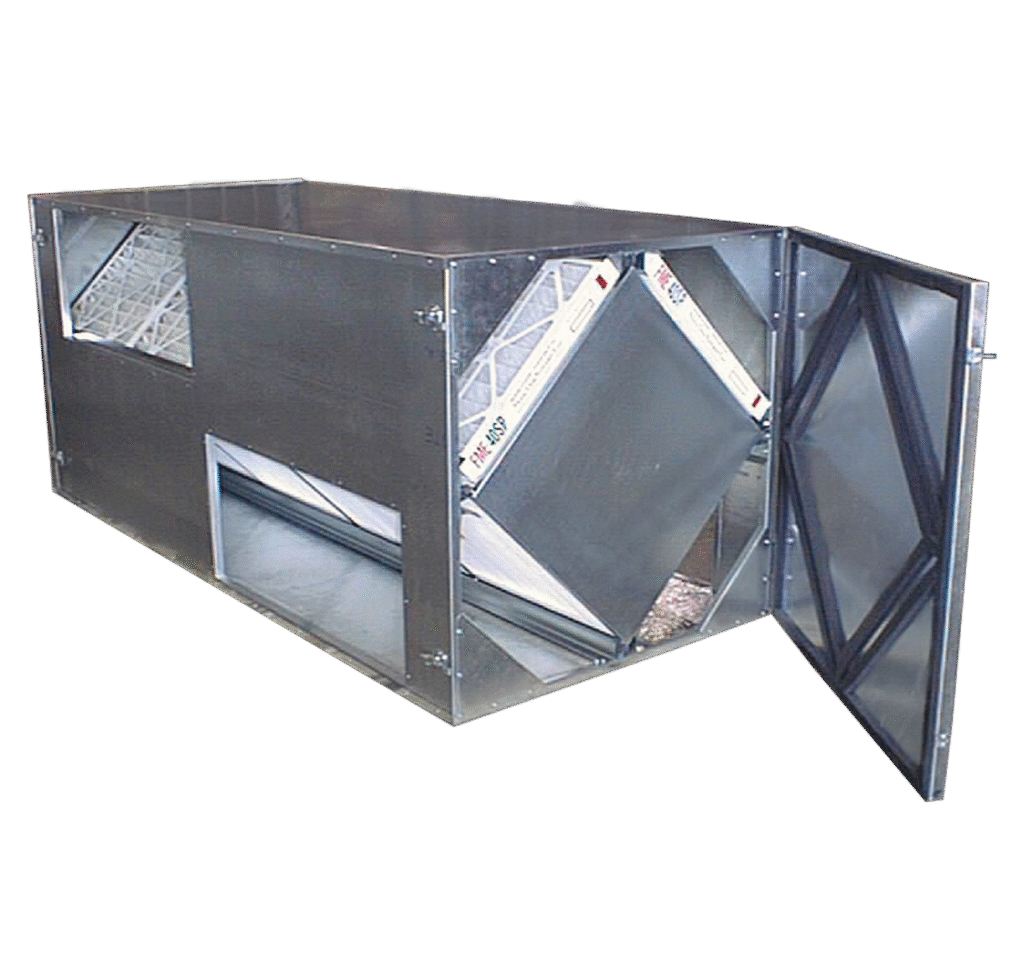

The RenewAire CA3XIN modular cabinet energy recovery ventilator (ERV) is designed as a flexible integration solution for package AC, chilled beam, fan coils, heat pumps, radiant floor and VRF/VRV systems and has a CFM range of 750–3,300 CFM. The CA3XIN is commercially certified, and can be installed for hospitals, schools, warehouses, manufacturing facilities, or institutional applications.
Unit features include a modular cabinet design that is stackable, has a configurable crossflow or parallel airflows, and MERV 13 filters (available as an accessory). Options for the CA3XIN include single and double wall (optional) construction and 1″ foil-faced insulation. The CA3XIN also has three G5 energy recovery cores, which are comprised of cellulosic-based material, and do not contain/use halogenated flame retardants or PVCs.
