Here is the complete RenewAire EV90 Energy Recovery Ventilator (ERV) | 40-110 CFM

EV 90

Indoor

40-110 CFM

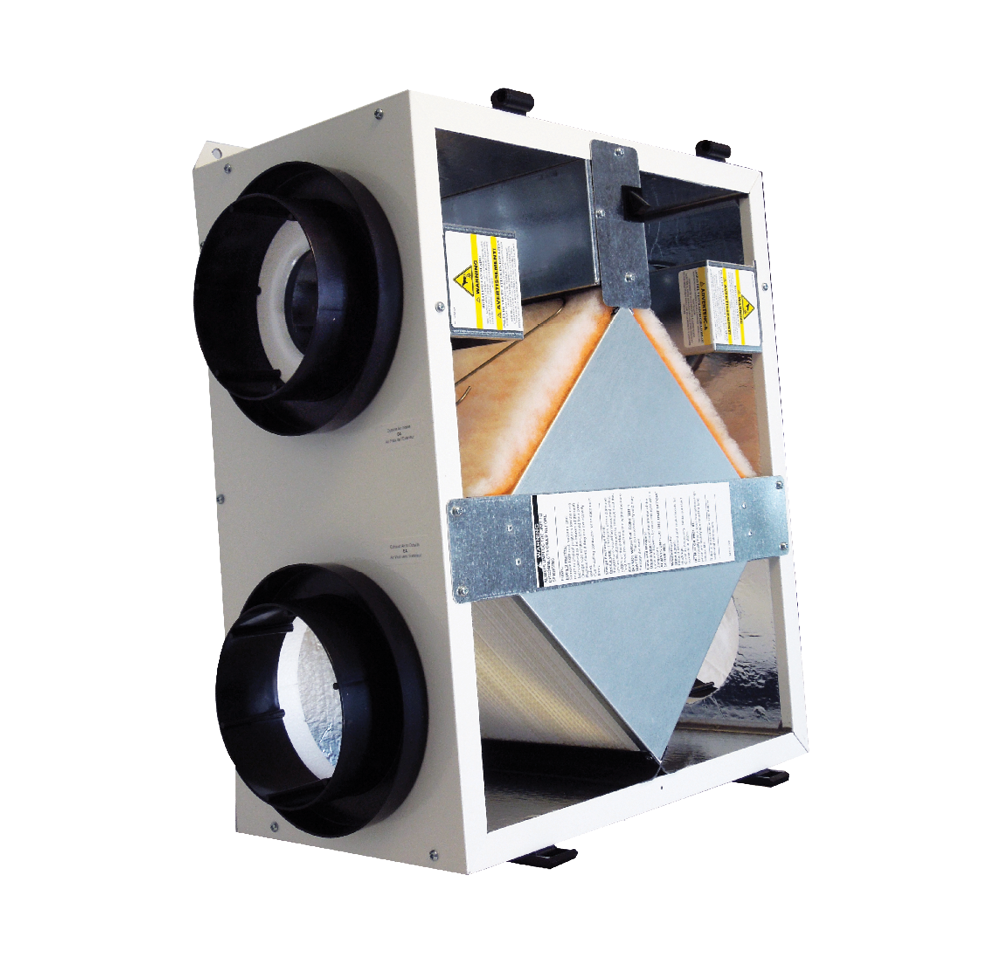

The RenewAire EV90 energy recovery ventilator (ERV) delivers fresh, filtered air to residential spaces and light commercial environments. Operating with an airflow range of 40–110 CFM, the EV90 serves single-family homes, factory offices, conference rooms, and break rooms with its consumer-grade appliance versatility.

Key Performance Features

Flexible Installation: Mount the unit in any orientation to fit your specific layout requirements.
Simple Power & Control: The unit includes a line-cord power supply and a low-voltage circuit for easy control integration.
Precision Monitoring: Cross-core differential pressure ports allow for accurate airflow measurement.

Sustainable Core Technology

At the heart of the EV90 sits the L-35-G5 core. Constructed from cellulosic-based material, this core optimizes energy recovery without the use of PVCs or halogenated flame retardants, ensuring a healthier indoor environment.

Application Type:

Indoor

Ventilation Type:

Static plate, heat and humidity transfer

Typical Airflow Range:

40-110 CFM

Core:

One L-35-G5

Standard OA Filter(s):

Total Qty: 1, Merv 8: spun polyester media, 9 5/8″ x 10 1/2″ x 1″

Standard RA Filter(s):

Total Qty: 1, Merv 8: spun polyester media, 9 5/8″ x 10 1/2″ x 1″

Dimensions:

22 1/2″ L x 11 5/8″ W x 23 3/4″ H

Weight:

36 lbs.

Key Features & Options

CERTIFICATION

Certified by ETL and the Home Ventilating Institute (HVI) against standard CAN/CSAC439-18 for an industry-leading CFM/w and energy transfer effectiveness. Superior core flammability performance; passes UL-723 and UL-1812.

MAINTENANCE

RenewAire cores are easy to clean without removing them from the unit, and they never require washing. Annually, vacuum the four core faces using a soft brush. Inspect filters every 3 months and replace as necessary.

RELIABILITY

All RenewAire ERVs have an industry-leading 10-year structural and performance warranty for their static-plate core. In addition to the core warranty, all residential products have a five-year warranty.

How to Buy

RenewAire is a B2B company. Our ERV and DOAS products are distributed through our network of HVAC wholesalers, distributors, and manufacturer’s reps. To find your sales representative, click the link below.

EV 90

Application Type:

Ventilation Type:

Typical Airflow Range:

Core:

Standard OA Filter(s):

Standard RA Filter(s):

Dimensions:

Weight:

Key Features & Options

CERTIFICATION

MAINTENANCE

RELIABILITY
