HE 20IN

Indoor

500-2200 CFM

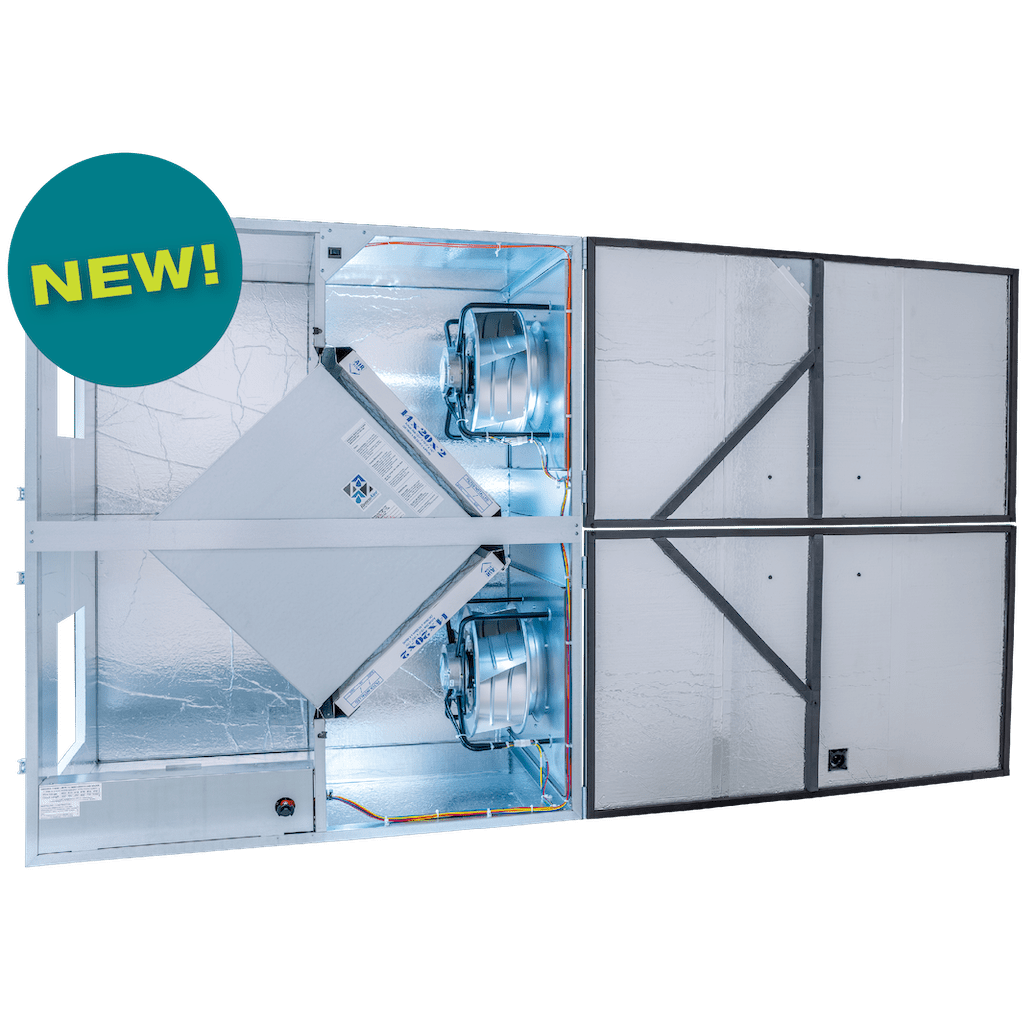

ERV-HE20IN-1024x1019

The RenewAire HE20IN energy recovery ventilator (ERV) delivers exceptional ventilation performance for mid-sized commercial environments. With a range of 500–2,200 CFM, the HE20IN offers a durable, low-maintenance, and energy-efficient ventilation solution for facilities looking to lower their energy costs up to 70%. Ideal applications include schools, clinics, banks, offices, fitness centers, and retail spaces.

Key Features

Efficient Performance: The HE20IN features direct-drive, backward-curved EC motorized impellers to optimize energy use.
Indoor Optimization: Designed for indoor installation, the unit’s small footprint allows for seamless integration into mechanical rooms, closets and existing HVAC ductwork.
Integrated Controls: Includes a 24VAC transformer/relay package and a non-fused disconnect for easier installation.

Sustainable Core Technology

The heart of the unit features two static-plate L125-G5 cores. Made from a specialized cellulosic-based material, our cores transfer heat and moisture with zero cross-contamination between airstreams.

Accessories & Upgrades

Boost your performance with a variety of options and accessories, including:

Maximize Efficiency: Upgrade to the advanced performance impeller package available in 208-230V/three-phase and 460V/three-phase.
BMS Integration: Increase functionality with integrated programmable controls, plus BACnet fan control for easy building management.
Filtration & Comfort: Improve indoor air quality (IAQ) with MERV 13 filters, plus CO2 and IAQ sensors to increase ventilation as needed.

Application Type:

Indoor

Ventilation Type:

Static plate, heat and humidity transfer

Typical Airflow Range:

500-2200 CFM

Core:

Two L125-G5

Standard OA Filter(s):

Total Qty. 2, MERV 8: 20″ x 20″ x 2″

Standard RA Filter(s):

Total Qty. 2, MERV 8: 20″ x 20″ x 2″

Dimensions:

58 1/8″ L x 43 3/8″ W x 56 1/4″ H (including e-box and hoods, if applicable)

Weight:

371-581 lbs. (varies by options)

Key Features & Options

CERTIFICATION

Certified under AHRI 1060 for an industry-leading, low-to-zero Exhaust Air Transfer Ratio (EATR) at typical static pressure differential. Superior core flammability performance; passes UL-723 and UL-1812.

MAINTENANCE

Our cores are easy to clean without removing them from the unit, and they never require washing. Simply vacuum the four core faces with a soft brush each year. Filters should also be inspected every three months and replaced as necessary.

RELIABILITY

All RenewAire ERVs come with an industry-leading 10-year structural and performance warranty for the static-plate core. In addition to the core warranty, all commercial products have a two-year warranty.
