HE 15RT

Rooftop

369-1621 CFM

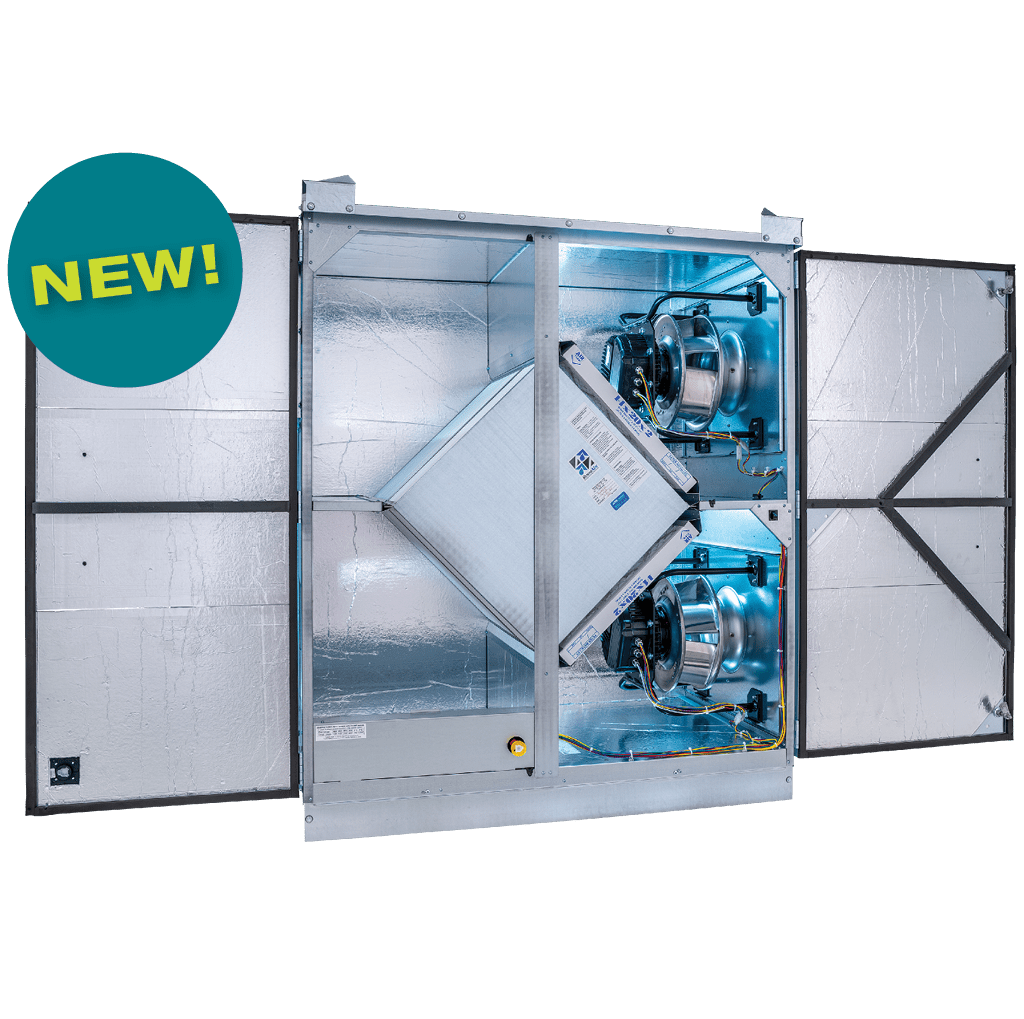

With a CFM range of 369-1621, the commercial HE15RT energy recovery ventilator (ERV) provides energy-efficient ventilation.

The RenewAire HE15RT energy recovery ventilator (ERV) offers a durable, low-maintenance, and energy-efficient ventilation solution for facilities looking to lower their energy costs up to 70%. With a range of 369–1,621 CFM, the HE15RT is ideal for commercial applications including schools, clinics, and retail spaces.

Key Features

Unmatched Durability: Built with a galvanized steel cabinet and finished with a weather-resistant powder coat to withstand the harshest outdoor elements.
Advanced Performance: Units come standard with direct-drive, backward-curved EC motorized impellers to optimize energy use.
Integrated Controls: Includes a 24VAC transformer/relay package and a non-fused disconnect for easier installation.

Sustainable Core Technology

The heart of the unit features one L62-G5 and one L125-G5 static-plate core. Our cores are made from a specialized cellulosic-based material that transfers heat and moisture with zero cross-contamination between airstreams.

Enhance with Accessories

Boost your performance with a variety of options and accessories, including:

Bypass Economizer: Capitalize on free cooling to reduce energy costs with the factory-installed bypass economizer option.
BMS Integration: Increase functionality with integrated programmable controls, plus BACnet fan control for easier building management.
Filtration & Comfort: Improve indoor air quality (IAQ) with MERV 13 filters, plus CO2 and IAQ sensors to increase ventilation as needed.

Application Type:

Rooftop

Ventilation Type:

Static plate, heat and humidity transfer

Typical Airflow Range:

369-1621 CFM

Core:

One L62-G5, One L125-G5

Standard OA Filter(s):

Total Qty. 2, MERV 8: 14″ x 20″ x 2″ and 16″ x 20″ x 2″

Standard RA Filter(s):

Total Qty. 2, MERV 8: 14″ x 20″ x 2″ and 16″ x 20″ x 2″

Dimensions:

92″ L x 33 5/8″ W x 64 1/4″ H (including e-box and hoods, if applicable); (92″ L x 51 7/8″ W x 64 1/4″ H for units with Bypass Economizer)

Weight:

391-615 lbs. (varies by options)

Key Features & Options

CERTIFICATION

Certified under AHRI 1060 for an industry-leading, low-to-zero Exhaust Air Transfer Ratio (EATR) at typical static pressure differential. Superior core flammability performance; passes UL-723 and UL-1812.

MAINTENANCE

Our cores are easy to clean without removing them from the unit, and they never require washing. Simply vacuum the four core faces with a soft brush each year. Filters should also be inspected every three months and replaced as necessary.

RELIABILITY

All RenewAire ERVs come with an industry-leading 10-year structural and performance warranty for the static-plate core. In addition to the core warranty, all commercial products have a two-year warranty.
